PE Pipe Production Line

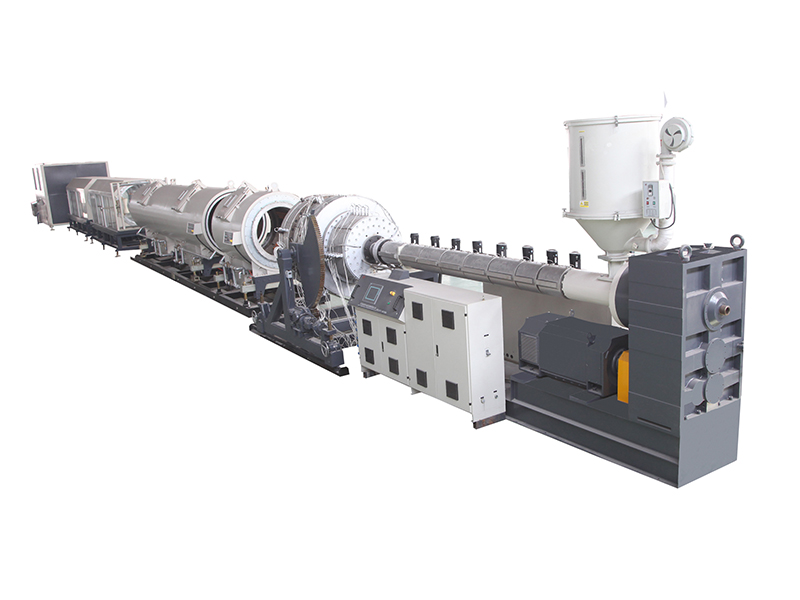

The PE pipe extrusion line is developed by Weier based on European advanced technology. It is suitable for producing PE,PP,PERT pipes at high speed production. The production line has a high degree of automation, optimized screw structure, stable production efficiency and won good reputation both in domestic and oversea markets.For producing large diameter pipes, we can also provide two-layer,three-layer and multi-layer composite pipe extrusion line. It is the best alternative to replace the imported production line. Based on the market demand, Weier has developed and manufactured larger HDPE pipe extrusion line with diameter up to 1600mm.



Features:

1. New type screw with L/D 38:1. Capacity has been increased largely

2. The complete line adopts advanced PLC control system, realizing synchronization and full-automation

3. New type high torque gearbox realizes much more stable production

4. Vacuum calibration tank and cooling tank adopt automatic water temperature and water level control as well as special independent filters.


Main technical parameters

Model

Pipe rang

Extruder model

Main motor power /kw

Max.capacity kg

WR-63

φ16-63

SJ-60/38

110

350-400

WR-110

φ20-110

SJ-60/38

110

350-400

WR-160

φ40-160

SJ-60/38

110

350-400

WR-250

φ50-250

SJ-75/38

160

500-550

WR-400

φ160-450

SJ-90/38

220

700-800

WR-630

φ250-630

SJ-120/38

2355

1100-1200

WR-800

φ315-800

SJ-120/38

355

1100-1200

WR-1200

φ500-1200

SJ-150/38

450

1400-1500

WR-1600

φ710-1600

SJ-150/38

450

1400-1500
